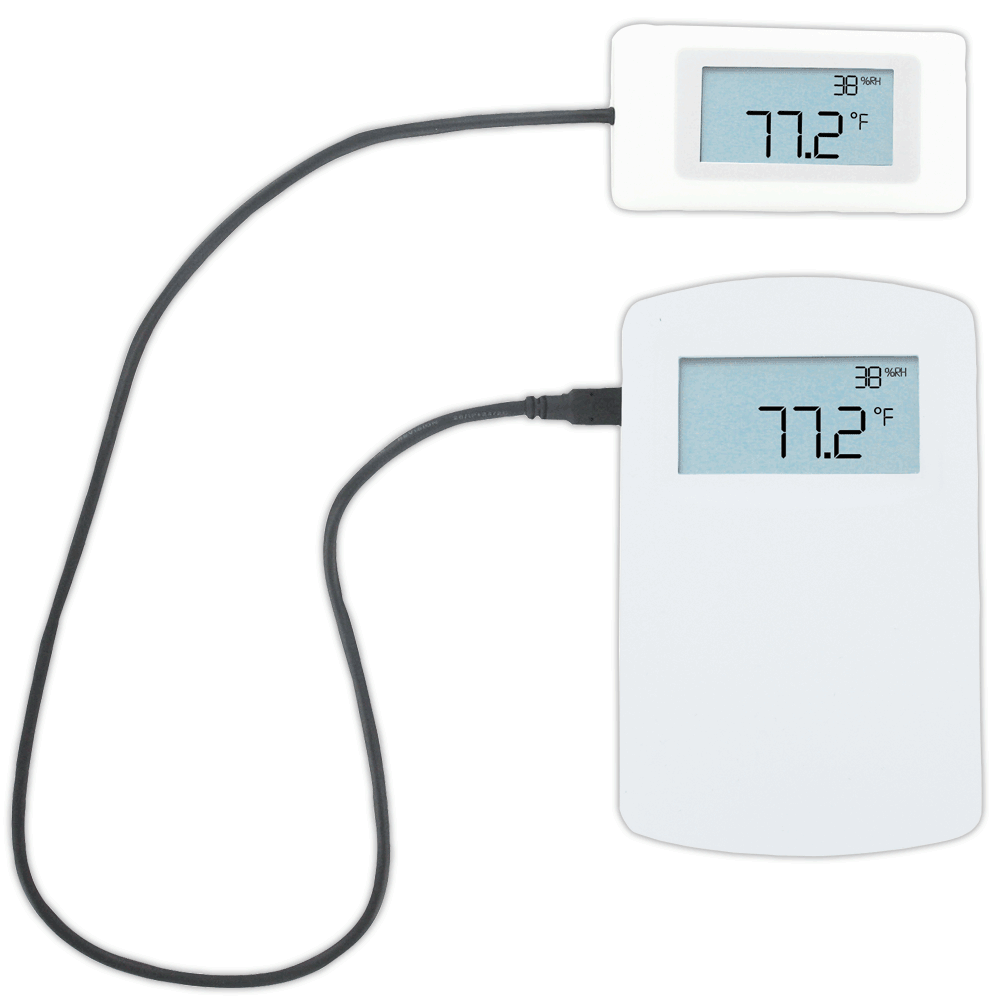

Series RHP-E/N Wall Mount Humidity/Temperature/Dew Point Transmitter
Xuất sứ: USA
Nhà cung cấp: Anh Nghi Sơn Việt Nam
Hãng sản xuất: DWYER
0385685705
| Model | Description |
| RHP-2E40 | European Wall Mount Humidity Transmitter with 2% accuracy and universal current / voltage output for RH |
| RHP-2E40-LCD | European Wall Mount Humidity Transmitter with 2% accuracy and universal current / voltage output for RH with LCD |
| RHP-2E44 | European Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and Temperature |
| RHP-2E44-LCD | European Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and Temperature with LCD |
| RHP-2E4A | European Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and 10K Type III thermistor Temperature Sensor |
| RHP-2E4B | European Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and 10K Type II thermistor Temperature Sensor |
| RHP-2N40 | North American Wall Mount Humidity Transmitter with 2% accuracy and universal current / voltage output for RH |
| RHP-2N40-LCD | North American Wall Mount Humidity Transmitter with 2% accuracy and universal current / voltage output for RH with LCD |
| RHP-2N44 | North American Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and Temperature |
| RHP-2N44-LCD | North American Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and Temperature with LCD |
| RHP-2N4A | North American Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and 10K Type III thermistor Temperature Sensor |
| RHP-2N4B | North American Wall Mount Humidity / Temperature Transmitter with 2% accuracy and universal current / voltage output for RH and 10K Type II thermistor Temperature Sensor |
| RHP-3E40 | European Wall Mount Humidity Transmitter with 3% accuracy and universal current / voltage output for RH |
| RHP-3E40-LCD | European Wall Mount Humidity Transmitter with 3% accuracy and universal current / voltage output for RH with LCD |
| RHP-3E44 | European Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and Temperature |
| RHP-3E44-LCD | European Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and Temperature with LCD |
| RHP-3E4A | European Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and 10K Type III thermistor Temperature Sensor |
| RHP-3E4B | European Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and 10K Type II thermistor Temperature Sensor |
| RHP-3N40 | North American Wall Mount Humidity Transmitter with 3% accuracy and universal current / voltage output for RH |
| RHP-3N40-LCD | North American Wall Mount Humidity Transmitter with 3% accuracy and universal current / voltage output for RH with LCD |
| RHP-3N44 | North American Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and Temperature |
| RHP-3N44-LCD | North American Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and Temperature with LCD |
| RHP-3N4A | North American Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and 10K Type III thermistor Temperature Sensor |
| RHP-3N4B | North American Wall Mount Humidity / Temperature Transmitter with 3% accuracy and universal current / voltage output for RH and 10K Type II thermistor Temperature Sensor |
Relative Humidity Range:
0 to 100% RH.
Temperature Range:
-40 to 140°F (-40 to 60°C) for thermistor and RTD sensors. -20 to 140°F (-28.9 to 60°C) for solid state band gap temperature sensors.
Dew Point Temperature Range:
-20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C) field selectable ranges.
Accuracy:
RH: Model RHP-2XXX ±2% 10 to 90% RH @ 25°C; Model RHP-3XXX ±3% 20 to 80% RH @ 25°C; Model RHP-5XXX ±5% 20 to 80% RH @ 25°C; Thermistor temperature sensor: ±0.36°F @ 77°F (±0.2°C @ 25°C); RTD temperature sensor: DIN Class B; ±0.54°F @ 32°F (±0.3°C @ 0°C); Solid state band gap temperature sensor: ±0.9°F @ 77°F (±0.3°C @ 25°C).
Hysteresis:
±1%.
Repeatability:
±0.1% typical.
Temperature Limits:
Operating: -40 to 140°F (-40 to 60°C); Storage: -40 to 176°F (-40 to 80°C).
Compensated Temperature Range:
-4 to 140°F (-20 to 60°C).
4-20 mA Loop Powered Outputs:
Power requirements: 10 to 35 VDC; Output signal: 4 to 20 mA, 2 channels for humidity/solid state temperature sensor models (loop powered on RH). Switch selectable RH/dew point. Switch selectable normal or reverse output.
0-5/10V Outputs:
Power requirements: 15 to 35 VDC or 15 to 29 VAC; Output load: 5 mA max., 2 channels for humidity/solid state temperature sensor models. Switch selectable 0-10 V/2-10 V or 0-5 V/1-5 V output. Switch selectable RH/dew point. Switch selectable normal or reverse output.
Solid State Band Gap Temp Sensor Output Ranges:
Switch selectable, -20 to 140°F (-28.9 to 60°C); 0 to 100°F (-17.8 to 37.8°C); 40 to 90°F (4.4 to 32.3°C); -4 to 140°F (-20 to 60°C).
Response Time:
15 seconds.
Electrical Connections:
Screw terminal block.
Drift:
<1% RH/year.
RH Sensor:
Capacitance polymer.
Enclosure Material:
White polycarbonate (European); Warm gray polycarbonate (North American).
Enclosure Rating:
IP20.
Display:
Optional LCD; Switch selectable %RH or dew point, °F/°C.
Display Resolution:
RH: 1%; Temperature: 0.1°F (0.1°C); Dew Point: 1°F (1°C).
Weight:
4.4 oz (125 g).
Agency Approvals:
CE.
